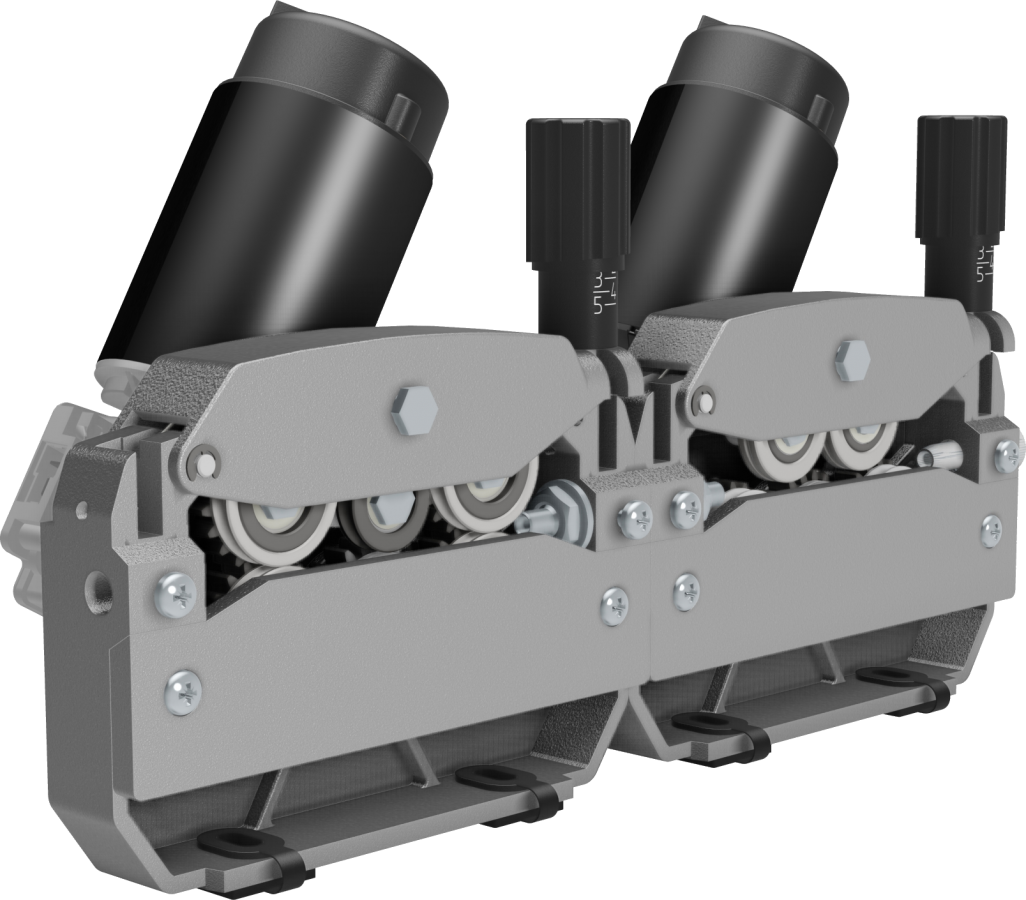

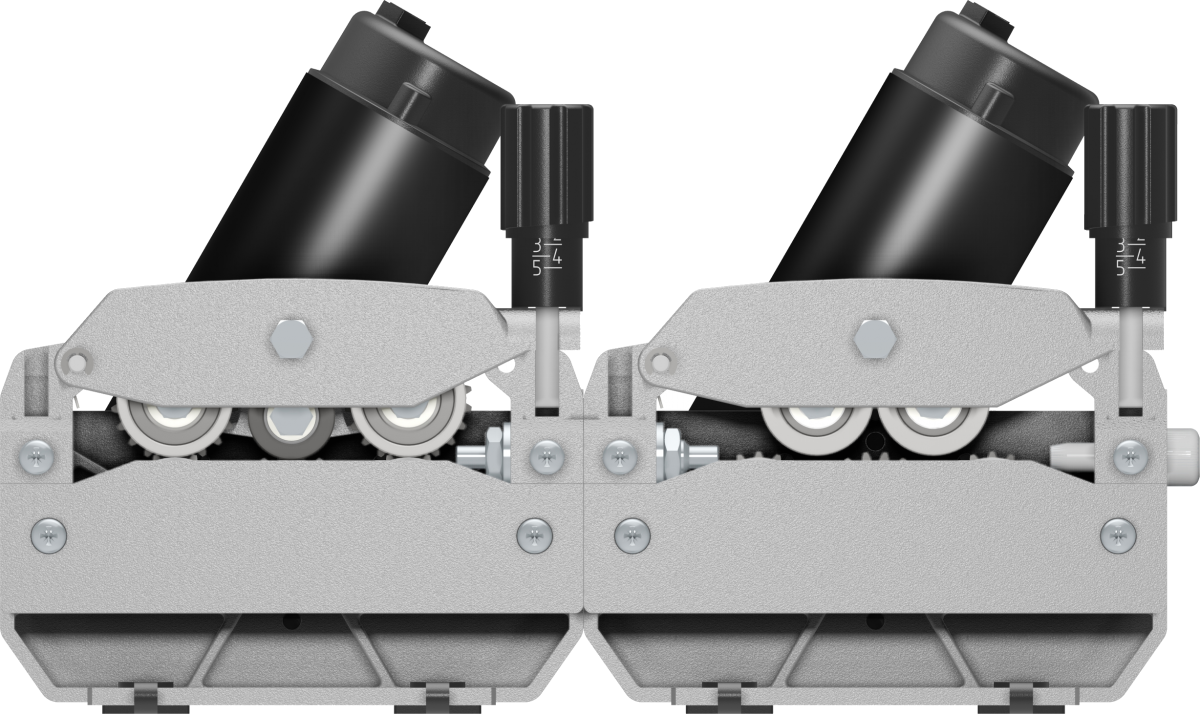

CWF 700 + CWF 700WS

Feed rolls incl. gear wheel with bearings D40 mm
V or U groove 1,0-4,8 mm
Pressure arm with gear wheel and lift opening
Robust body
Construction with reduced wire shaving
Wider, stronger gear wheels
Grooved upper rolls
One adjusting arm with forward opening
Safety guard of metal plate (aluminium casting: option)
Wire feed motor 40 - 120 W can be assembled in A1-A6, B1-B6 positions
Torch connection on the right or left side
Wire straightener can be assembled with motor
Perfectly usable to feed of high diameter steel or aluminium wires

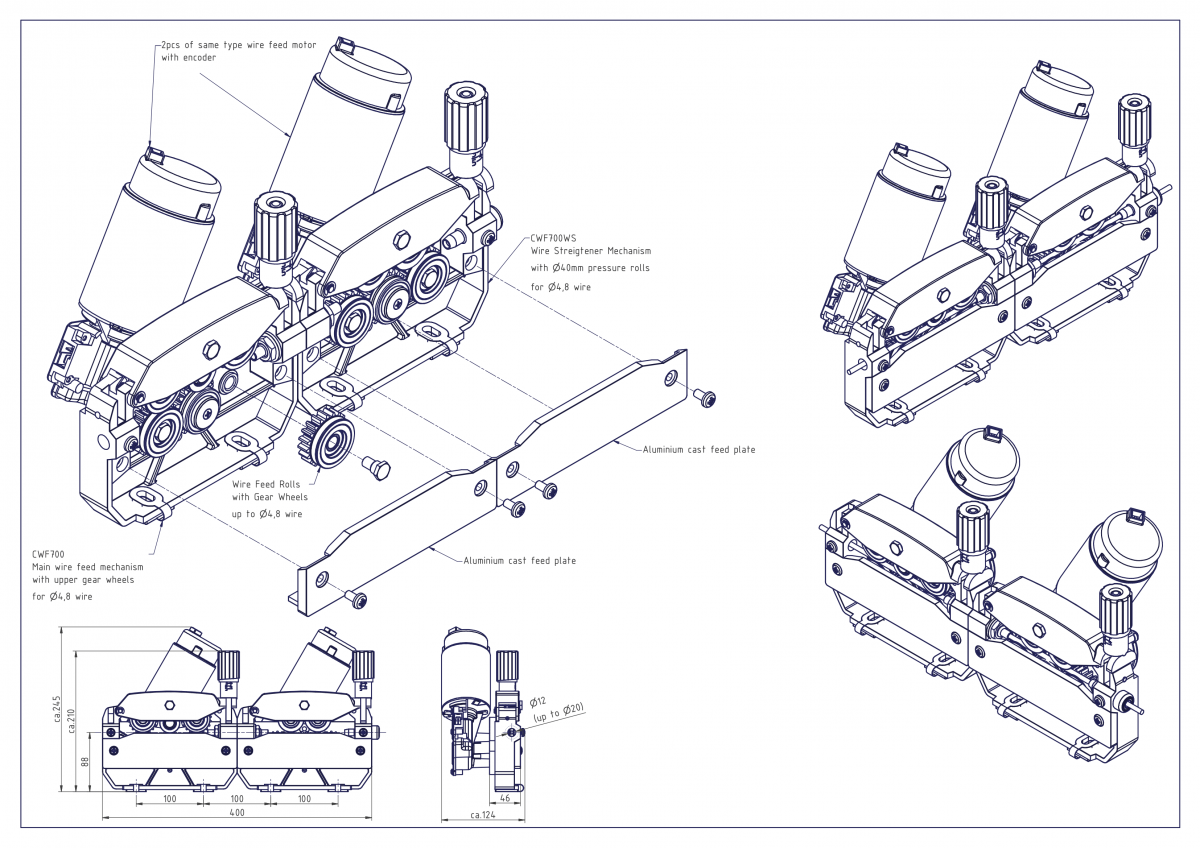

Overall fitting dimensions
