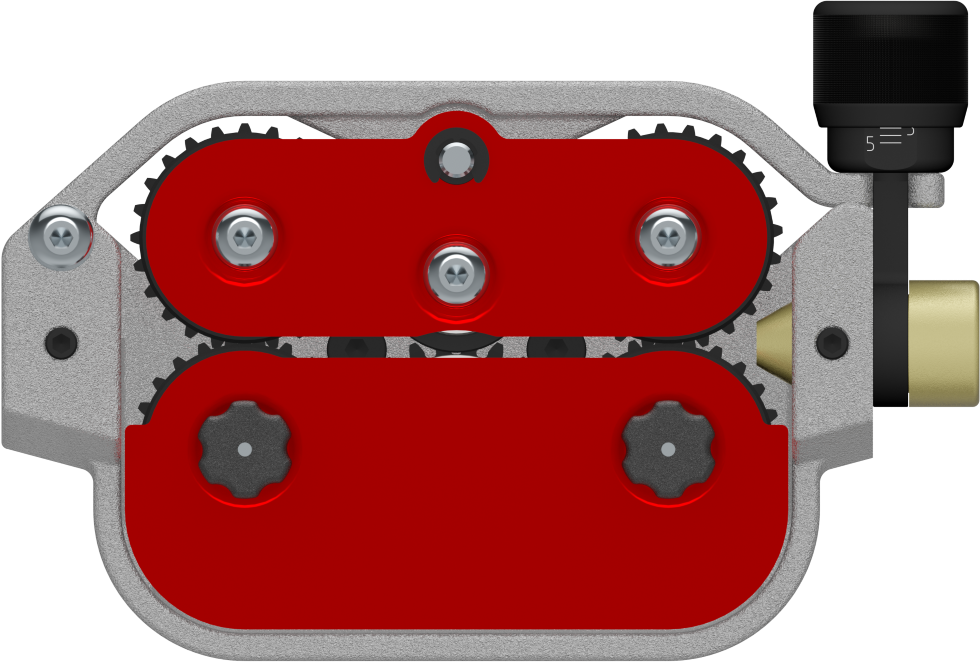

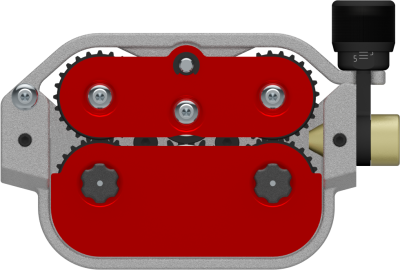

CM 417

Four Roll Wire Feed Mechanics

of Aluminium Feed Plate

feeds wire from 0,6 to 2,4 mm (.023-3/32")

Feed roll D30 mm V or U groove
Knurled feed rolls (option)
Pressure arm with lift opening
Adjusting arm with front opening
Metal plate in different colours (option)
Wire feed motors 25 - 120 W can be assembled
Designed for servo and stepper motors
Reduced wire friction
Assembled to baseplate or backplate
Torch connection on the right or left side
Inductive sensor for wire speed measurement can be used
Suggested assemble with:
- Central adaptor and Wire straightener
- Vario Central Adaptor system (VCA)
- Quick Spring Tension Adjustment system (QST A)

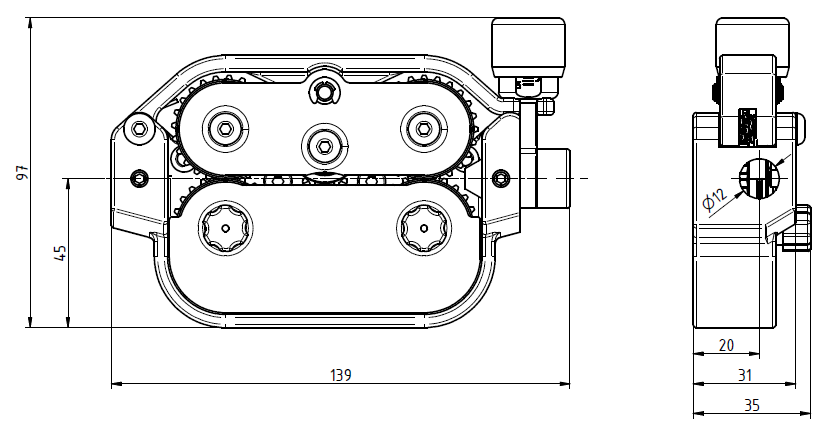

Size (mm): 139 (W) x 97 (H) x 35 (D)
Wire height from bottom: 45 mm

Verisons
CM 417 feed roll D30 mm pressure arm with gear wheel + ball bearings
