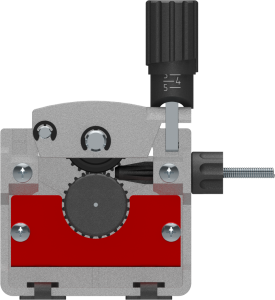

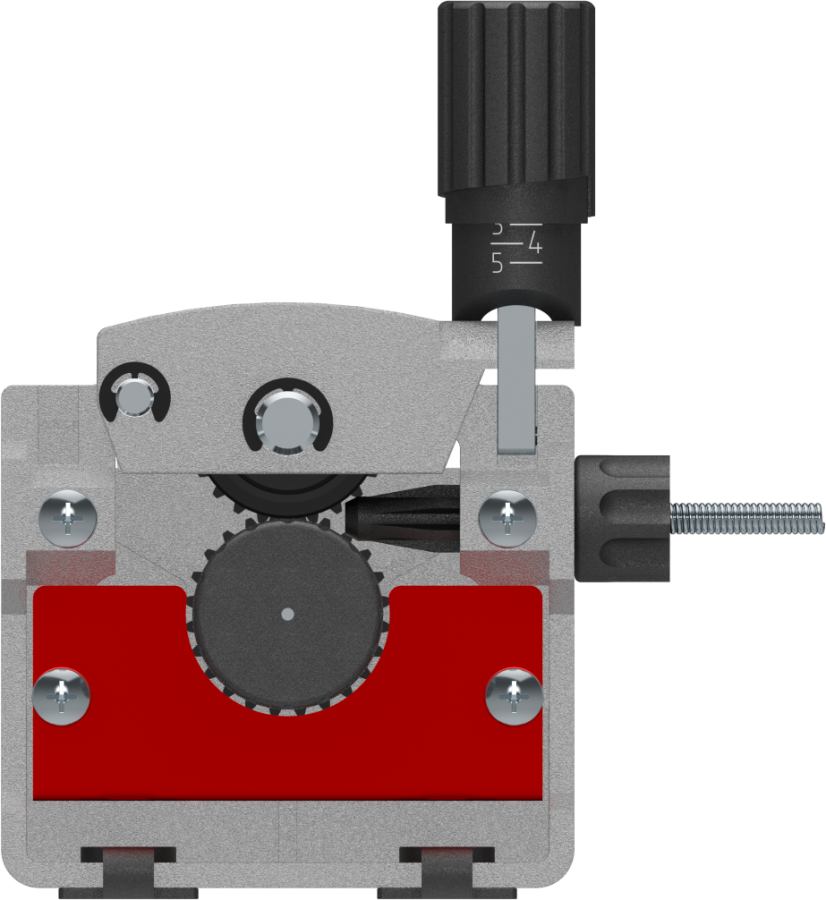

CWF 30

Two Roll Wire Feed Mechanics

of Aluminium Feed Plate

feeds wire from 0,6 to 1,6 mm (.023-1/16")

Feed roll D30, D37 or D40 mm V or U groove
Knurled feed rolls (option)
Pressure arm with lift opening
Adjusting arm with front opening
Safety guard of metal plate in different colours (option)
Plastic feed plate (option)
Aluminium pressure arm (option)
Wire feed motor 25 - 65 W can be assembled in A1-A6, B1-B6 positions
Torch connection on the right or left side
Central adaptor and Wire straightener can be equipped
Size: 90 (W) x 150 (H) x 44 (D)
Wire height from bottom: 60 mm

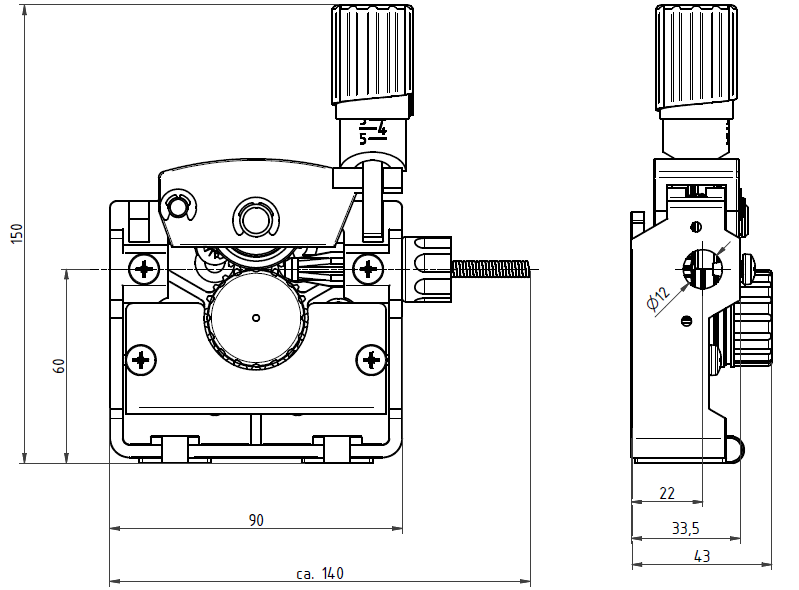

Overall fitting dimensions

Verisons
CWF 30-3 feed roll D30 mm pressure arm with bearing

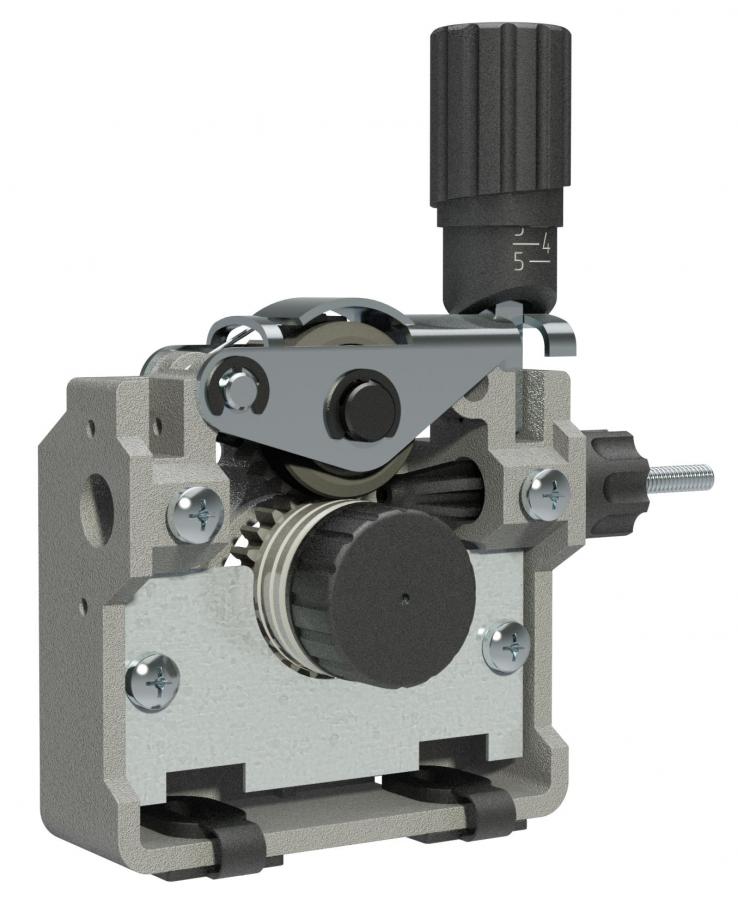

CWF 31-3 feed roll D30 mm pressure arm with gear wheel
CWF 30-37 feed roll D37 mm pressure arm with bearing
CWF 31-37 feed roll D37 mm pressure arm with gear wheel
CWF 30-4 feed roll D40 mm pressure arm with bearing
CWF 31-4 feed roll D40 mm pressure arm with gear wheel
