CWF 403

Four Roll Wire Feed Mechanics

of Aluminium Feed Plate

feeds wire from 0,6 to 2,4 mm (.023-3/32")

Feed roll D30 mm V or U groove
Knurled feed rolls (option)
Gear wheels with ball bearings (option)
Pressure arm with lift opening
Adjusting arm with front opening

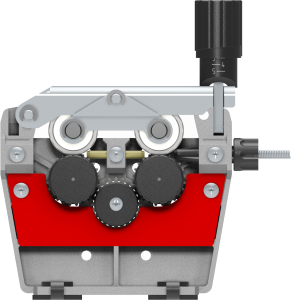

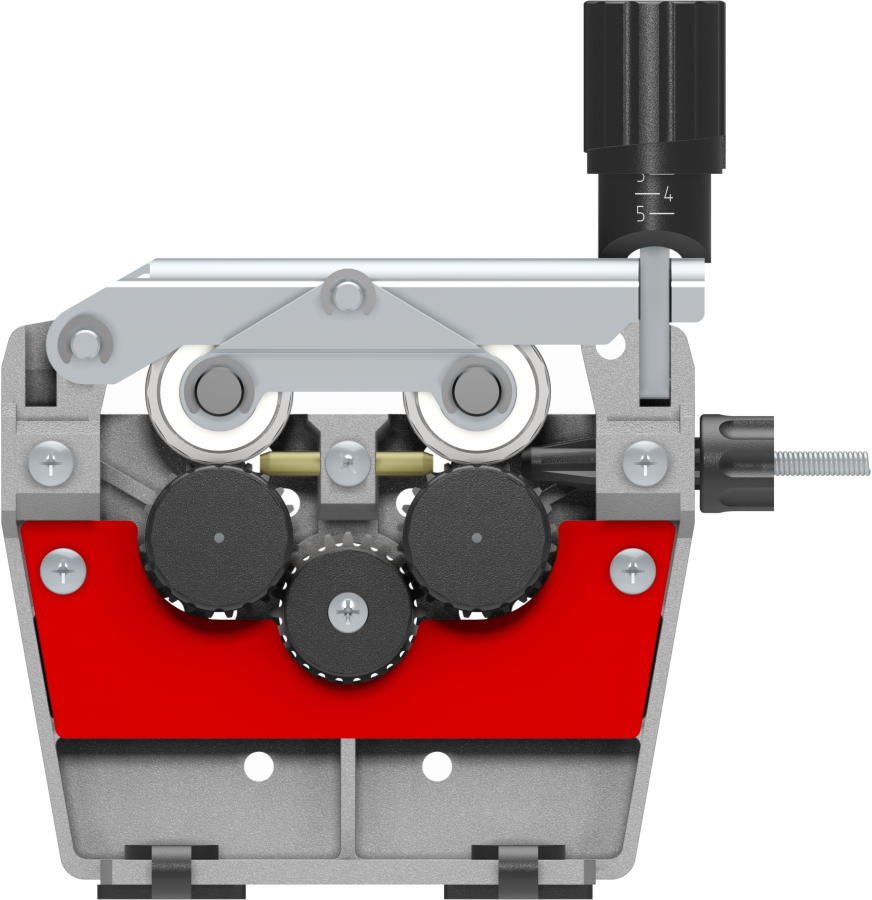

Safety guard of metal plate in different colours (option)
Wire feed motor 25 - 120 W can be assembled
Torch connection on the right or left side
Central adaptor and Wire straightener can be equipped

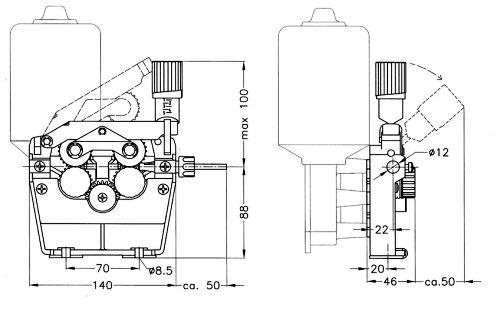

Size: 106 (W) x 150 (H) x 43 (D)
Wire height from bottom: 70 mm

Verisons
CWF 403 feed roll D30 mm pressure arm with bearing

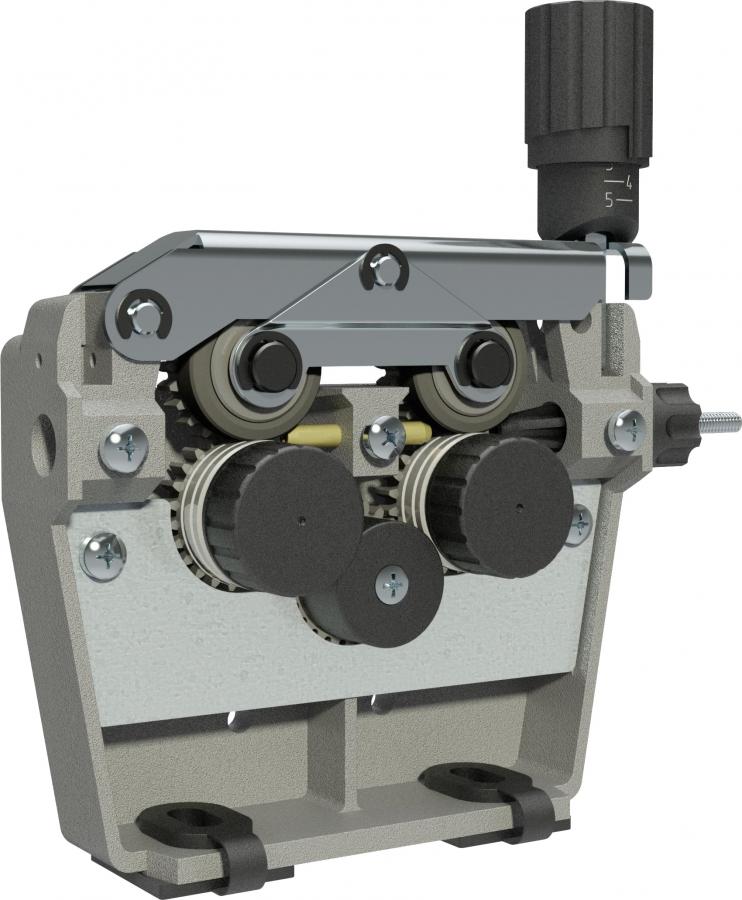

CWF 413 feed roll D30 mm pressure arm with gear wheel
