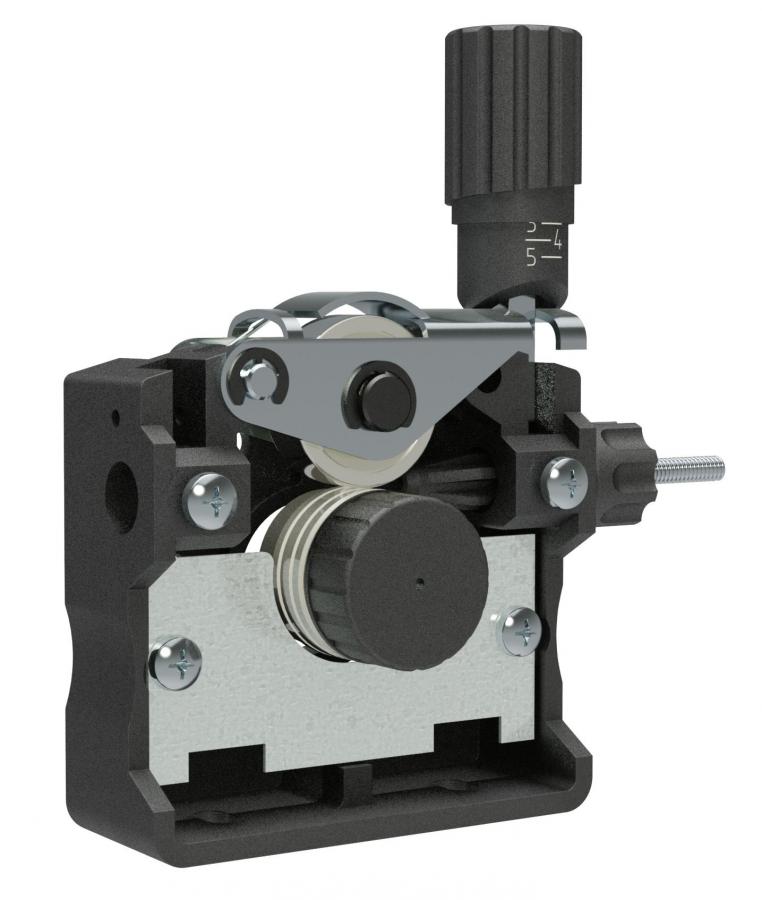

CWF 10
Two Roll Wire Feed Mechanics
of Plastic Feed Plate
feeds wire from 0,6 to 1,6 mm (.023-1/16")
Feed roll D30 or D40 mm V or U groove
Knurled feed rolls: option
Pressure arm with bearing and lift opening
Adjusting arm with forward opening

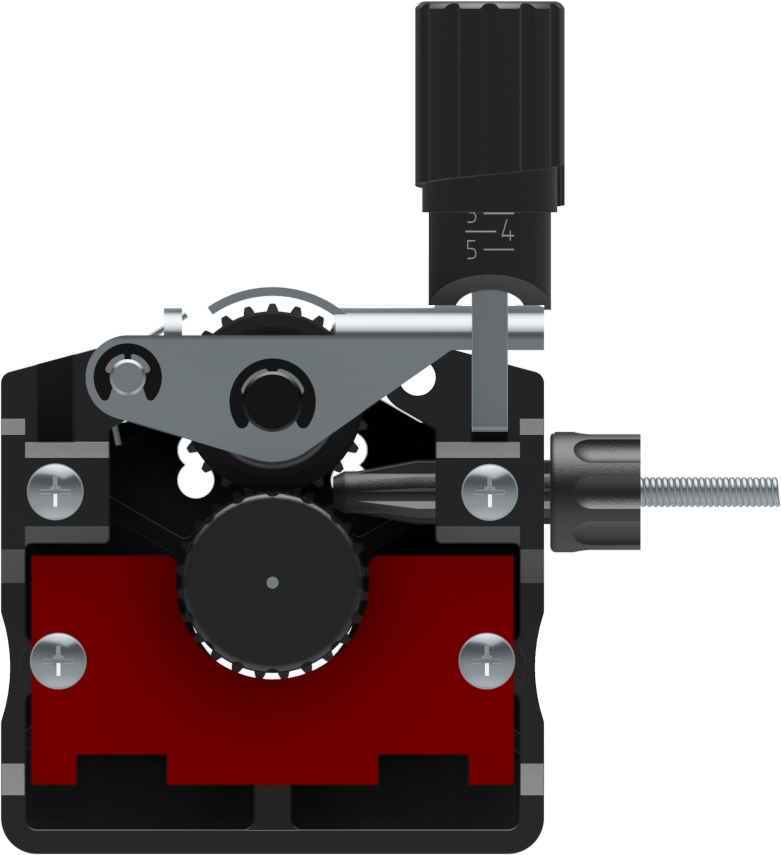

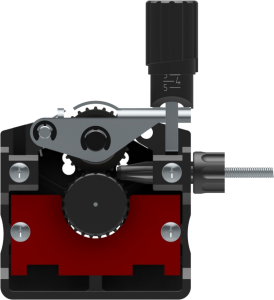

Safety guard of metal plate in different colours (option)
Plastic feed plate of glass fibre
Wire feed motor 25 - 40 W can be assembled in A1-A6, B1-B6 positions
Torch connection on the right or left side
Central adaptor and Wire straightener can be equipped
Size: 90 (W) x 150 (H) x 44 (D)
Wire height from bottom: 60 mm

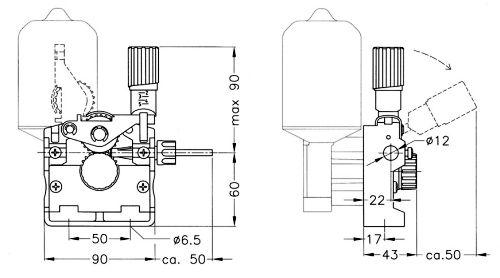

Overall fitting dimensions
| Verisons | ||||||
| CWF 10-3 | feed roll D30 mm | pressure arm with bearing | ||||
| CWF 11-3 | feed roll D30 mm | pressure arm with gear wheel | ||||
| CWF 10-4 | feed roll D40 mm | pressure arm with bearing | ||||
| CWF 11-4 | feed roll D40 mm | pressure arm with gear wheel | ||||
